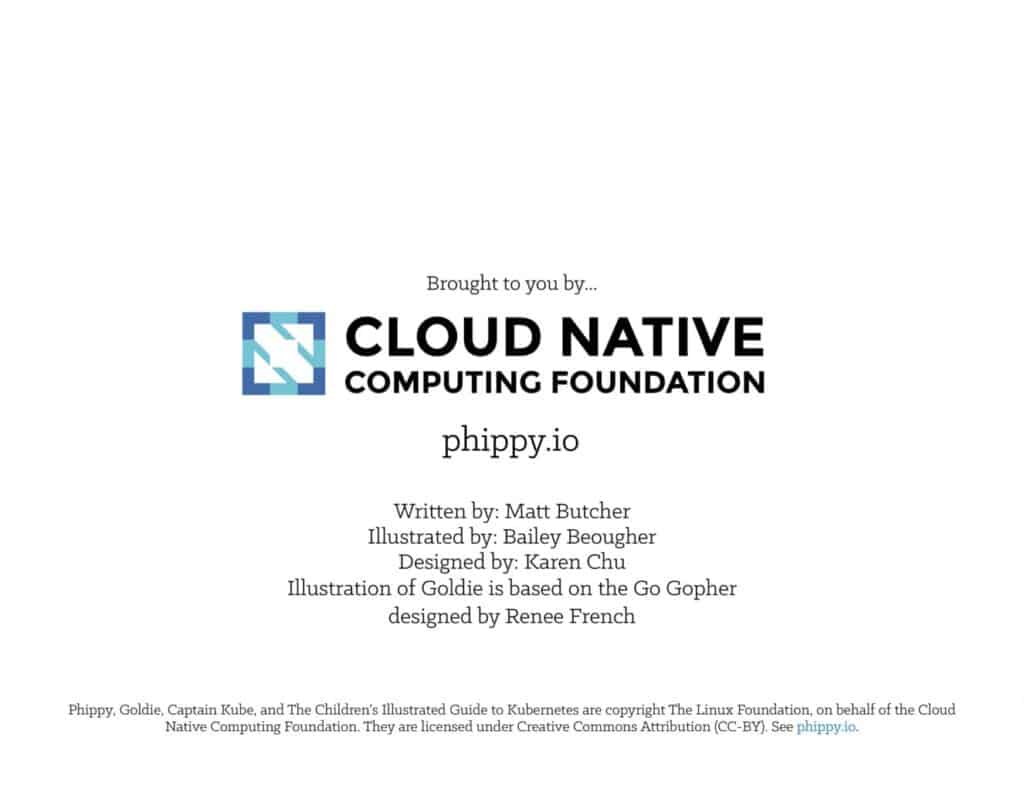

Brought to you by…

Cloud Native Computing Foundation

Written by: Matt Butcher and Karen Chu
Illustrated by: Bailey Beougher
Illustration of Goldie is based on the Go Gopher
designed by Renee French

Phippy, Goldie, Captain Kube, and The Children’s Illustrated Guide to Kubernetes are copyright The Linux Foundation, on behalf of the Cloud Native Computing Foundation. They are licensed under Creative Commons Attribution (CC-BY). See phippy.io.

A little girl holding Phippy looking at her father working with a computer

Dedicated to all the parents who try to explain software engineering to their children.

Phippy surrounded by scary creatures

Once upon a time there was an app named Phippy. And she was a simple app. She was written in PHP and had just one page. She lived on a hosting provider and she shared her environment with scary other apps that she didn’t know and didn’t care to associate with. She wished she had her own environment: just her and a webserver she could call home.

Important Resources of The Environment

An app has an environment that it relies upon to run. For a PHP app, that environment might include a webserver, a readable file system, and the PHP engine itself.

Phippy sailing on a container accompanied by a kind whale shark

One day, a kindly whale came along. He suggested that little Phippy might be happier living in a container. And so the app moved. And the container was nice, but… It was a little bit like having a fancy living room floating in the middle of the ocean.

Description of Containers

A container provides an isolated environment in which an app, together with its environment, can run. But those isolated containers often need to be managed and connected to the external world. Shared file systems, networking, scheduling, load balancing, and distribution are all challenges.

Whale shark disappeared on Phippy. A giant ship sailed by Captain Kube approached Phippy

The whale shrugged his shoulders. “Sorry, kid,” he said, and disappeared beneath the ocean’s surface. But before Phippy could even begin to despair, a captain appeared on the horizon, piloting a gigantic ship. The ship was made of dozens of rafts all lashed together, but from the outside, it looked like one giant ship.

“Hello there, friend PHP app. My name is Captain Kube” said the wise old captain.

Philosophia Biou Kubernetes

“Kubernetes” is the Greek word for a ship’s captain. We get the words Cybernetic and Gubernatorial from it. The Kubernetes project focuses on building a robust platform for running thousands of containers in production.

Captain Kube giving Phippy a name tag

“I’m Phippy,” said the little app.

“Nice to make your acquaintance,” said the Captain as he slapped a name tag on her.

Kubernetes uses labels

Kubernetes uses labels as “nametags” to identify things. And it can query based on these labels. Labels are open-ended: You can use them to indicate roles, stability, or other important attributes.

Phippy sailing with Captain Kube on his giant ship

Captain Kube suggested that the app might like to move her container to a pod on board the ship. Phippy happily moved her container inside of the pod aboard Kube’s giant ship. It felt like home.

Description of Pods

In Kubernetes, a Pod represents a runnable unit of work. Usually, you will run a single container inside of a Pod. But for cases where a few containers are tightly coupled, you may opt to run more than one container inside of the same Pod. Kubernetes takes on the work of connecting your pod to the network and the rest of the Kubernetes environment.

Phippy sharing her thought about genetics with Captain Kube

Phippy had some unusual interests. She was really into genetics and sheep. And so she asked the captain, “What if I want to clone myself… On demand… Any number of times?”

“That’s easy,” said the captain. And he introduced her to the replication controllers.

Description of Replication Controllers

Replication controllers provide a method for managing an arbitrary number of pods. A replication controller contains a pod template, which can be replicated any number of times. Through the replication controller, Kubernetes will manage your pods’ lifecycle, including scaling up and down, rolling deployments, and monitoring.

An elephant, a lion, and a turtle looking at 4 Phippy in a room talking with Captain Kube

For many days and nights the little app was happy with her pod and happy with her replicas. But only having yourself for company is not all it’s cracked up to be…. even if it is N copies of yourself.

Captain Kube smiled benevolently, “I have just the thing.”

No sooner had he spoken than a tunnel opened between Phippy’s replication controller and the rest of the ship. With a hearty laugh, Captain Kube said, “Even when your clones come and go, this tunnel will stay here so you can discover other pods, and they can discover you!”

Description of Services

A service tells the rest of the Kubernetes environment (including other pods and replication controllers) what services your application provides. While pods come and go, the service IP addresses and ports remain the same. And other applications can find your service through Kurbenetes service discovery.

Phippy shedding tears as Goldie gives her a gift

Thanks to the services, Phippy began to explore the rest of the ship. It wasn’t long before Phippy met Goldie. And they became the best of friends. One day, Goldie did something extraordinary. She gave Phippy a present. Phippy took one look and the saddest of sad tears escaped her eye.

“Why are you so sad?” asked Goldie.

“I love the present, but I have nowhere to put it!” sniffled Phippy.

But Goldie knew what to do. “Why not put it in a volume?”

Description of Volumes

A volume represents a location where containers can access and store information. For the application, the volume appears as part of the local filesystem. But volumes may be backed by local storage, Ceph, Gluster, Elastic Block Storage, and a number of other storage backends.

Phippy loved life aboard Captain Kube’s ship and she enjoyed the company of her new friends (every replicated pod of Goldie was equally delightful). But as she thought back to her days on the scary hosted provider, she began to wonder if perhaps she could also have a little privacy.

“It sounds like what you need,” said Captain Kube, “is a namespace.”

Description of Namespaces

A namespace functions as a grouping mechanism inside of Kubernetes. Services, pods, replication controllers, and volumes can easily cooperate within a namespace, but the namespace provides a degree of isolation from the other parts of the cluster.

Phippy, Captain Kube and Goldie sailing happily together across the ocean with whale shark from distance

Life was good aboard Captain Kube’s boat. Together with her new friends, Phippy sailed the seas. She had many grand adventures, but most importantly, Phippy had found her home.

And so Phippy lived happily ever after.
