In this article, we’ll look at how you can use Envoy Gateway, an Envoy project open source solution, together with Istio when running in Ambient mode. This allows you to easily leverage the power of Envoy’s L7 capabilities for Ingress and east-west traffic in your mesh with easy-to-use CRDs.
To understand how this integration works, let’s first take a quick look at Ambient Mesh itself. Also known as Istio Ambient mode, it’s a sidecar-less service mesh architecture that aims to simplify deployments and can boost efficiency for specific use cases. Unlike sidecar-based meshes, Ambient splits the data plane into two key components: the ztunnel, which secures service-to-service communication, and the Waypoint Proxy, which handles Layer 7 traffic routing and policy enforcement.
On the other side, Envoy Gateway is a Kubernetes-native API gateway built on top of Envoy Proxy. It’s designed to work seamlessly with the Kubernetes Gateway API and takes a batteries-included approach—offering built-in support for authentication, authorization, rate limiting, CORS handling, header manipulation, and more. These capabilities are exposed through familiar Kubernetes-style APIs, letting you fully tap into Envoy’s power without needing complex configurations.
Because both Ambient Mesh and Envoy Gateway are built on top of Envoy, they share a common foundation. This makes integration straightforward and allows Envoy Gateway to act as both the Ingress Gateway and Waypoint Proxy—giving you a consistent and powerful way to manage traffic and apply Layer 7 policies across your mesh.
Why use Envoy Gateway with Ambient Mesh?
While Ambient Mesh simplifies service mesh operations by removing sidecars, its feature set doesn’t yet match the maturity of the sidecar-based model. Some advanced Layer 7 capabilities are either missing, considered experimental, or require extra complexity to configure in native Ambient mode.
- Limited VirtualService Support
VirtualService—a key resource for traffic management in classic Istio—is only available at Alpha level in Ambient. On top of that, it can’t be used in combination with Gateway API resources. That leaves you with the Gateway API as the only supported option. While it handles basic routing just fine, it’s intentionally generic to support many gateway implementations. As a result, you lose access to some of the richer, Envoy-specific functionality — such as global rate limiting, circuit breaking, and OIDC authentication.
- Lack of EnvoyFilter Support
In Ambient mode, EnvoyFilters are not supported. These filters are critical in sidecar deployments when you need to tweak or extend proxy behavior at the xDS level—whether for custom logic, telemetry, or integration with external systems. Without them, your ability to fine-tune proxy behavior is limited, which can be a blocker for advanced or production-grade use cases.
That’s where Envoy Gateway comes into play. It extends the Gateway API with a powerful set of custom policies, including ClientTrafficPolicy, BackendTrafficPolicy, SecurityPolicy, EnvoyExtensionPolicy, and EnvoyPatchPolicy, to harness Envoy’s full potential within Ambient Mesh. These policies can be applied directly to core Gateway API resources, such as Gateway and HTTPRoute, allowing for detailed traffic management, improved security, pluggable extensions, and even low-level xDS patching—all while maintaining the simplicity of a sidecar-free architecture.

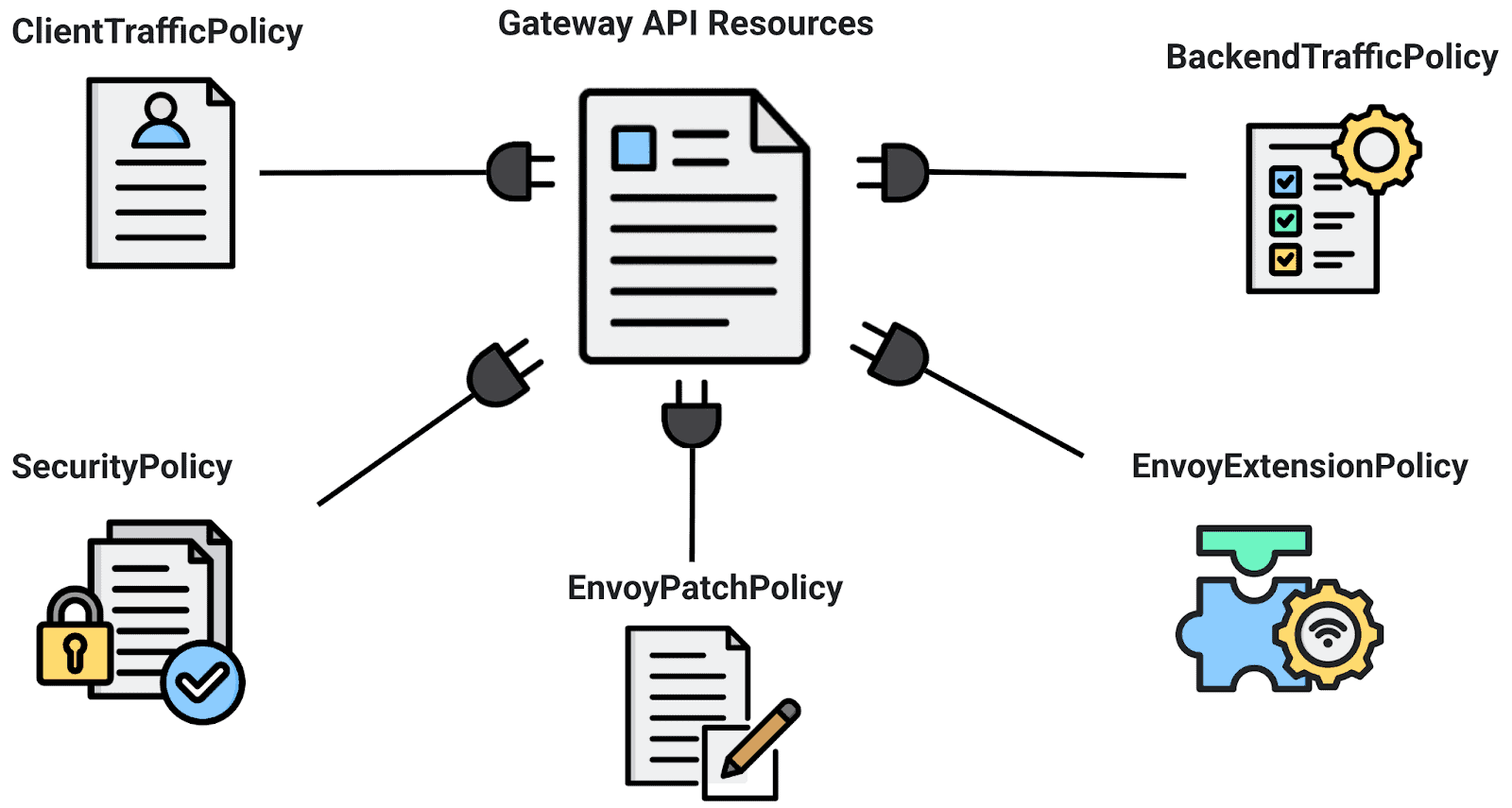

Unlocking Envoy’s Full Potential with Envoy Gateway Policies in Ambient Mesh
How Envoy Gateway Works in Ambient Mesh?
In a default Ambient Mesh deployment, the waypoint proxy handles both terminating the incoming HBONE tunnel and establishing a new one to the destination service. It also applies Layer 7 traffic policies during this process.

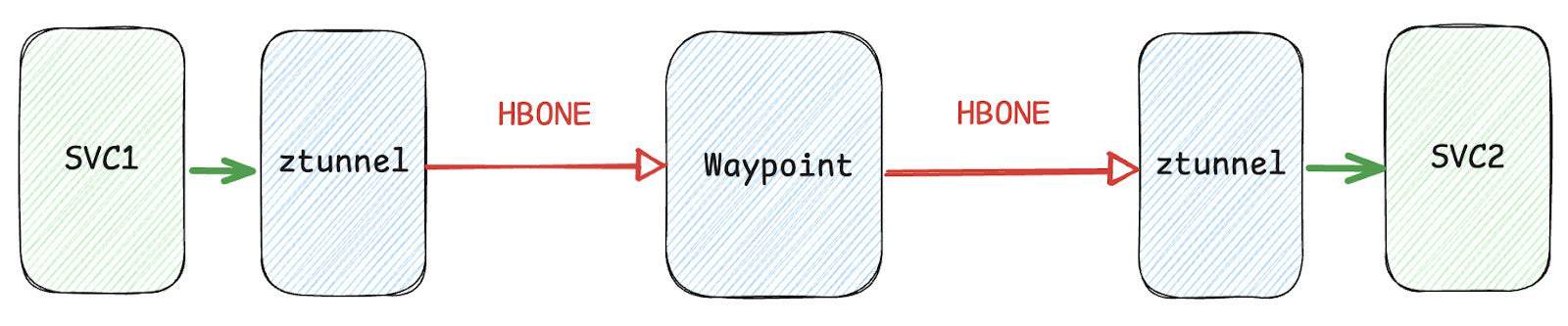

Traffic Flow in a Default Waypoint Proxy Deployment
However, Ambient also supports a more modular “sandwich” model, where the ztunnel is logically placed before and after the waypoint proxy, much like a sandwich. In this setup, the ztunnel is responsible for managing the HBONE tunnels on both sides, while the waypoint proxy focuses solely on L7 traffic management and policy enforcement.

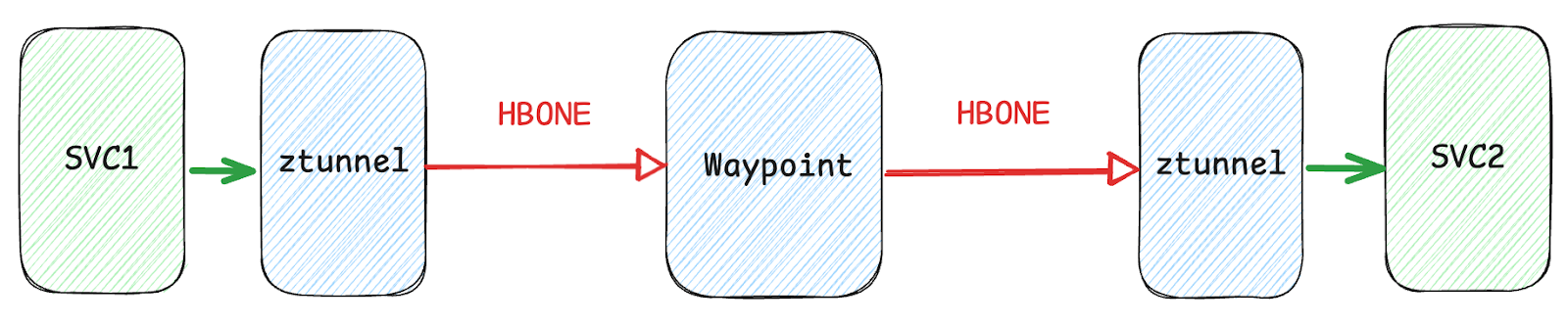

Traffic Flow in a Sandwiched Waypoint Proxy Deployment
Note: This diagram illustrates how traffic flows through various components in Ambient Mesh. While it appears that there are two zTunnels placed before and after Envoy Gateway, they’re actually the same instance—let’s gloss over that detail for simplicity.
This separation of responsibilities enables the replacement of the default waypoint proxy and Ingress Gateway with Envoy Gateway. By doing so, you can leverage Envoy Gateway’s advanced Gateway API capabilities without giving up the simplicity of Ambient Mesh.
This also enables the use of Envoy Gateway as the Ingress Gateway for Ambient Mesh. The only difference is that the ztunnel needs to be placed only after Envoy Gateway (not in front), since incoming traffic originates outside the mesh and doesn’t arrive over an HBONE tunnel.
Setting Up Envoy Gateway as the Ingress Gateway
Let’s walk through an example, creating an Envoy Gateway as Ingress, routing to a backend service and defining a global rate limiting for a specific service. Then, you will deploy an Envoy Gateway as a waypoint proxy.
To begin with, you need to have a Kubernetes cluster with Istio Ambient mode installed, like:
istioctl install --set profile=ambientThen, install the Envoy Gateway with:
helm install eg oci://docker.io/envoyproxy/gateway-helm \
--version v0.0.0-latest \
--set config.envoyGateway.provider.kubernetes.deploy.type=GatewayNamespace \
-n envoy-gateway-system \
--create-namespaceNotice the flag for the deploy type. With this you make sure the Gateway is deployed where the Gateway resource is created and not in the envoy-gateway-system namespace, which is the default behavior.
Label the default namespace for ambient onboarding:
kubectl label namespace default istio.io/dataplane-mode=ambientLast but not least, deploy a backend service you wish to call. In this case, we use Istio’s classic Bookinfo in the default namespace.
kubectl apply -f https://raw.githubusercontent.com/istio/istio/refs/heads/master/samples/bookinfo/platform/kube/bookinfo.yamlWith the canvas in place, it’s time to take the brushes. You need a GatewayClass as the Ingress template, a Gateway instantiating this class and the HTTPRoute establishing the data path bridge. Apply them:
cat <<EOF | kubectl apply -f -
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
name: eg-ingress
spec:
controllerName: gateway.envoyproxy.io/gatewayclass-controller
EOFIn Gateway, notice the gatewayClassName referencing eg-ingress above as well as the onboarding to the Ambient mesh:
cat <<EOF | kubectl apply -f -
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
labels:
istio.io/dataplane-mode: ambient
name: bookinfo-ingress
spec:
gatewayClassName: eg-ingress
listeners:
- allowedRoutes:
namespaces:
from: Same
name: ingress
port: 80
protocol: HTTP
EOFcat <<EOF | kubectl apply -f -
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: ingress-bookinfo
spec:
parentRefs:
- group: gateway.networking.k8s.io
kind: Gateway
name: bookinfo-ingress
rules:
- backendRefs:
- group: ""
kind: Service
name: productpage
port: 9080
EOFNow, onto some validations. Attention, as this step will help you get Envoy Gateway and Ambient basic debugging skills. First, check the Gateway is created and that its traffic is intercepted by ztunnel:
$ kubectl get pod -l app.kubernetes.io/name=envoy
NAME READY STATUS RESTARTS AGE
bookinfo-ingress-bcc6457b8-qfhcv 2/2 Running 0 3h11m
$ istioctl ztunnel-config connections --node <NODE_NAME> -o yaml | yq '.[].info | select(.name | test("^envoy*"))'
name: bookinfo-ingress-bcc6457b8-qfhcv
namespace: default
serviceAccount: bookinfo-ingress-bcc6457b8-qfhcv
trustDomain: ""Then, inspect the HTTPRoute was effectively attached to the Gateway and it could find the backend service:
$ kubectl get httproute ingress-bookinfo -oyaml | yq '.status.parents'
- conditions:
- lastTransitionTime: "2025-07-18T03:20:14Z"
message: Route is accepted
observedGeneration: 1
reason: Accepted
status: "True"
type: Accepted
- lastTransitionTime: "2025-07-18T03:20:14Z"
message: Resolved all the Object references for the Route
observedGeneration: 1
reason: ResolvedRefs
status: "True"
type: ResolvedRefs
controllerName: gateway.envoyproxy.io/gatewayclass-controller
parentRef:
group: gateway.networking.k8s.io
kind: Gateway
name: bookinfo-ingressSeems like everything’s in order. Time to make the requests:
$ export ENVOY_SERVICE=$(kubectl get svc --selector=gateway.envoyproxy.io/owning-gateway-name=bookinfo-ingress -o jsonpath='{.items[0].metadata.name}')
$ kubectl port-forward service/${ENVOY_SERVICE} 8080:80 &
$ curl localhost:8080/productpage -w '%{http_code}\n' -o /dev/null -s
200Ztunnel logs the following:
2025-07-18T03:33:20.718599Z info access connection complete src.addr=10.244.1.70:45168 src.workload="envoy-default-bookinfo-ingress-15c0d731-57b6bb576c-8ltvl" src.namespace="default" src.identity="spiffe://cluster.local/ns/default/sa/envoy-default-bookinfo-ingress-15c0d731" dst.addr=10.244.1.68:15008 dst.hbone_addr=10.244.1.68:9080 dst.workload="productpage-v1-54bb874995-kzpnw" dst.namespace="default" dst.identity="spiffe://cluster.local/ns/default/sa/bookinfo-productpage" direction="outbound" bytes_sent=232 bytes_recv=15245 duration="2022ms"That’s Envoy Gateway sandwiched by ztunnel working as an Ingress for Istio Ambient Mesh!
Hold on. This Ingress needs rate limiting. This is achieved by using a new Redis backend, referencing it in the EG configuration, and applying a BackendTrafficPolicy. We’re deploying a demo Redis instance here for demo purposes. In a production setup, you’ll want to provide your own Redis service—properly secured and scaled to meet your traffic demands.
cat <<EOF | kubectl apply -f -
kind: Namespace
apiVersion: v1
metadata:
name: redis-system
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
namespace: redis-system
labels:
app: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:6.0.6
imagePullPolicy: IfNotPresent
name: redis
resources:
limits:
cpu: 1500m
memory: 512Mi
requests:
cpu: 200m
memory: 256Mi
---
apiVersion: v1
kind: Service
metadata:
name: redis
namespace: redis-system
labels:
app: redis
annotations:
spec:
ports:
- name: redis
port: 6379
protocol: TCP
targetPort: 6379
selector:
app: redis
EOFOnce the Redis DB is ready, go ahead and upgrade the eg helm release’s values, adding a rate limit backend:
helm upgrade eg oci://docker.io/envoyproxy/gateway-helm \
--set config.envoyGateway.rateLimit.backend.type=Redis \
--set config.envoyGateway.rateLimit.backend.redis.url="redis.redis-system.svc.cluster.local:6379" \
--reuse-values \
-n envoy-gateway-systemThen, create a BackendTrafficPolicy that enforces a limit of 3 requests per hour for non-admin users.
cat <<EOF | kubectl apply -f -
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: BackendTrafficPolicy
metadata:
name: productpage-rate-limiting
spec:
targetRefs:
- group: gateway.networking.k8s.io
kind: HTTPRoute
name: ingress-bookinfo
rateLimit:
type: Global
global:
rules:
- clientSelectors:
- headers:
- type: Distinct
name: x-user-id
- name: x-user-id
value: admin
invert: true
limit:
requests: 3
unit: Hour
EOFAnd test it:
$ while true; do curl localhost:8080/productpage -H "x-user-id: john" -w '%{http_code}\n' -o /dev/null -s; sleep 1; done
Handling connection for 8080
200
Handling connection for 8080
200
Handling connection for 8080
200
Handling connection for 8080
429
Handling connection for 8080
429Enabling Envoy Gateway as the Waypoint Proxy
For the waypoint proxy, many steps remain the same; you still create a GatewayClass, a Gateway, and HTTPRoutes. However, you define a separate GatewayClass for the waypoint, as its configuration differs from that of the ingress gateway.
cat <<EOF | kubectl apply -f -
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
name: eg-waypoint
spec:
controllerName: gateway.envoyproxy.io/gatewayclass-controller
parametersRef:
group: gateway.envoyproxy.io
kind: EnvoyProxy
name: waypoint
namespace: default
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
name: waypoint
spec:
provider:
kubernetes:
envoyService:
type: ClusterIP
patch:
type: StrategicMerge
value:
spec:
ports:
# HACK:ztunnel currently expects the HBONE port to always be on the Waypoint's Service
# This will be fixed in future PRs to both istio and ztunnel.
- name: fake-hbone-port
port: 15008
protocol: TCP
targetPort: 15008
type: Kubernetes
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
labels:
istio.io/dataplane-mode: ambient
name: waypoint
spec:
gatewayClassName: eg-waypoint
listeners:
- allowedRoutes:
namespaces:
from: Same
name: ratings
port: 9080
protocol: HTTP
- allowedRoutes:
namespaces:
from: Same
name: fake-hbone
port: 15008
protocol: TCP
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: ratings
spec:
hostnames:
- ratings
- ratings.default
- ratings.default.svc.cluster.local
parentRefs:
- group: gateway.networking.k8s.io
kind: Gateway
name: waypoint
rules:
- backendRefs:
- group: ""
kind: Service
name: ratings
port: 9080
EOFLabel the ratings service so it uses the already deployed waypoint. You could also label the namespace for all services to use it:
$ kubectl label svc ratings istio.io/use-waypoint=waypointAfter making the same request as before, check the waypoint’s logs:
{":authority":"ratings:9080","bytes_received":0,"bytes_sent":358,"connection_termination_details":null,"downstream_local_address":"10.244.1.73:9080","downstream_remote_address":"10.244.1.68:38315","duration":3,"method":"GET","protocol":"HTTP/1.1","requested_server_name":null,"response_code":200,"response_code_details":"via_upstream","response_flags":"-","route_name":"httproute/default/ratings/rule/0/match/0/ratings","start_time":"2025-07-18T05:16:36.829Z","upstream_cluster":"httproute/default/ratings/rule/0","upstream_host":"10.244.1.65:9080","upstream_local_address":"10.244.1.73:33244","upstream_transport_failure_reason":null,"user-agent":"curl/8.7.1","x-envoy-origin-path":"/ratings/0","x-envoy-upstream-service-time":null,"x-forwarded-for":"10.244.1.68","x-request-id":"839bb7b2-af76-496c-9760-b90f118f191c"}Now let’s look at a more advanced scenario—using features in Envoy Gateway that aren’t yet available in Ambient L7. Circuit breaking is a great example, enabling your service to fail fast and avoid cascading failures when upstreams become unhealthy.
For this, we need a failing service. Luckily, ratings has a delayed mode to simulate it. Add to it this env variable:
kubectl set env deployment/ratings-v1 SERVICE_VERSION=v-delayedFor testing, you can use the hey load testing tool to send traffic directly to the ratings service from within the cluster.
kubectl run hey --rm -i --image=williamyeh/hey http://ratings:9080/ratings/0
If you don't see a command prompt, try pressing enter.
Summary:
Total: 28.5228 secs
Slowest: 7.5211 secs
Fastest: 0.0005 secs
Average: 3.6650 secs
Requests/sec: 7.0119
Response time histogram:
0.000 [1] |
0.753 [98] |■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
1.505 [0] |
2.257 [0] |
3.009 [0] |
3.761 [0] |
4.513 [0] |
5.265 [0] |
6.017 [0] |
6.769 [0] |
7.521 [101] |■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■The ratings service adds a 7-second delay to half of the responses, which you can observe in the output from the hey command.
Next, create a new BackendTrafficPolicy with a deliberately aggressive circuit breaker configuration—just enough to make it easy to trip during testing.
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: BackendTrafficPolicy
metadata:
name: circuit-breaker-btp
spec:
targetRefs:
- group: gateway.networking.k8s.io
kind: HTTPRoute
name: ratings
circuitBreaker:
maxPendingRequests: 0
maxParallelRequests: 10Make sure it has been accepted:
$ kubectl get backendtrafficpolicy circuit-breaker-btp -ojsonpath='{.status.ancestors[0].conditions}'
[{"lastTransitionTime":"2025-07-22T08:53:59Z","message":"Policy has been accepted.","observedGeneration":2,"reason":"Accepted","status":"True","type":"Accepted"}]%Now, run the hey test again to check if the circuit breaker is kicking in as expected:
$ kubectl run hey --rm -i --image=williamyeh/hey http://ratings:9080/ratings/0
If you don't see a command prompt, try pressing enter.
Summary:
Total: 0.7135 secs
Slowest: 0.6990 secs
Fastest: 0.0007 secs
Average: 0.1720 secs
Requests/sec: 280.3131
Total data: 16200 bytes
Size/request: 81 bytes
Response time histogram:
0.001 [1] |
0.071 [149] |■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
0.140 [0] |
0.210 [0] |
0.280 [0] |
0.350 [0] |
0.420 [0] |
0.490 [0] |
0.559 [0] |
0.629 [0] |
0.699 [50] |■■■■■■■■■■■■■
(trimmed)
Status code distribution:
[503] 200 responses
pod "hey" deletedNotice how most of the requests failed in under 100ms—this indicates that the circuit breaker kicked in and started rejecting traffic quickly.
If you check the waypoint logs, you’ll see clear signs of this in action: the UO response flag and response_code_details set to overflow show that the circuit breaker was triggered. Envoy Gateway dropped the excess requests without forwarding them to the ratings service, just as expected.
$ kubectl logs waypoint-7cc857d87b-8kv2z
Defaulted container "envoy" out of: envoy, shutdown-manager
{":authority":"ratings:9080","bytes_received":0,"bytes_sent":81,"connection_termination_details":null,"downstream_local_address":"10.244.1.36:9080","downstream_remote_address":"10.244.1.41:40909","duration":0,"method":"GET","protocol":"HTTP/1.1","requested_server_name":null,"response_code":503,"response_code_details":"upstream_reset_before_response_started{overflow}","response_flags":"UO","route_name":"httproute/default/ratings/rule/0/match/0/ratings","start_time":"2025-07-22T09:14:19.407Z","upstream_cluster":"httproute/default/ratings/rule/0","upstream_host":"10.244.1.37:9080","upstream_local_address":null,"upstream_transport_failure_reason":null,"user-agent":"hey/0.0.1","x-envoy-origin-path":"/ratings/0","x-envoy-upstream-service-time":null,"x-forwarded-for":"10.244.1.41","x-request-id":"f611fd0a-8b7f-4c7d-ad18-6f0f8812ac6b"}
...Now, it’s time for you to try it out!
Should You Use Envoy Gateway with Ambient Mesh?
Envoy Gateway offers comprehensive Layer 7 capabilities, including rate limiting, OIDC and JWT authentication, API key checks, CORS support, and detailed observability. All of these features are integrated into Ambient’s simple, sidecar-free design. Combining a lightweight ambient mesh with powerful Layer 7 ingress features.
Of course, there are tradeoffs. You’ll need to run a separate control plane to configure Envoy Gateway and manage configuration in addition to your Istio setup.
If the built-in ingress and waypoint proxies already meet your needs, there’s no pressure to switch. However, suppose you’re seeking greater control, enhanced security, and increased flexibility at Layer 7. In that case, Envoy Gateway is a powerful way to elevate your Ambient Mesh setup while sticking to fully open-source solutions.
✅ When to Use Envoy Gateway with Ambient
Consider using Envoy Gateway if you:
- Need advanced Layer 7 features like:
- Rate limiting
- JWT/OIDC authentication
- API key validation
- CORS handling
- Wasm or ext_proc extensions
- Want Gateway API compatibility with more powerful, opinionated policies (e.g., SecurityPolicy, ClientTrafficPolicy)
- Prefer a unified control plane to manage both ingress and internal Layer 7 traffic
- Appreciate a batteries-included gateway that works out of the box—without needing to write custom Envoy filters (unless you really want to)
❌ When You Might Hold Off (For Now)
You might want to skip Envoy Gateway—at least for now—if you:
- Are still experimenting with Ambient Mesh and don’t need advanced Layer 7 features
- Are fine with the current limitations of Ambient’s built-in Gateway support (e.g., no VirtualService, limited routing options)
- Want to keep your control plane as lightweight and simple as possible, avoiding extra CRDs or configuration overhead
What’s Next?
Envoy Gateway and Ambient are a duo that will optimize some of your workloads, so we encourage you to try it out. It unblocks the migration as your organization doesn’t have to wait for the Istio API to include for Ambient the powerful Envoy features you’ve already experienced in this demo.
Curious to see what else Envoy Gateway can do in an Ambient Mesh? Check out the official tasks to explore its full feature set.
Still, keep in mind that Ambient is not a one-size-fits-all solution, and its usage should be addressed workload by workload. On this matter, Tetrate has the data-driven Istio Ambient Assessment Advisor to help you understand better the implications based on your own data. Don’t miss it as it’s free!
