Relational databases have a long history in many organizations. Relational databases are the basis for existing applications that meet current business needs. They are supported by a rich set of tools; and there is a large pool of employees qualified to implement and maintain these systems.
But organizations are increasingly considering alternatives to legacy relational infrastructure. In some cases, the motivation is:
- Technical – such as a need to handle new, multi-structured data types or scale beyond the capacity constraints of existing systems.
- In other cases the motivation is driven by the desire to identify viable alternatives to expensive proprietary database software and hardware.
- A third motivation is agility or speed of development, as companies look to adapt to the market more quickly and embrace agile development methodologies.
Many of the new solutions to solve the new requirements have their origin at the well-known Cloud service providers. Wide varieties of Relational and NoSQL database technologies were developed in response to the demands presented in building modern applications:
- Developers are working with applications that create massive volumes of new, rapidly changing data types – structured, semi-structured, unstructured, and polymorphic data.
- Small teams work in agile sprints, iterating quickly and pushing code every week or two, some even multiple times every day.
- Applications that once served a finite audience are now delivered as services that must be always-on, accessible from many different devices, and scaled globally to millions of users.
- Organizations are now turning to scale-out architectures using open-source software, commodity servers and cloud computing instead of large monolithic servers and storage infrastructure.
Interfaces and services offered
This database solution provides db engines and storage to run applications using a database. The interfaces provided are those offered by the corresponding database product. Below section lists down solutions for each type of database variants:
DB Solution for PostgreSQL
DB Solution for PostgreSQL are defined in three variants as below:
PostgreSQL (Ephemeral)
This service provides a single PostgreSQL instance without persistent storage. Thus, it is ideal use case is where:
- no need for replication
- no need for high availability
- a database is only necessary temporarily, e.g. during automatic tests
PostgreSQL (persistent)
The only difference to the variant described before is that the database data is stored on persistent storage. Thus, the variant could be used where there is:
- no need for replication
- no need for high availability
- the database should be available for later reuse
PostgreSQLReplicated (Ephemeral)
This variant provides at least two instances of PostgreSQL. One is the master instance, the other runs in replication mode but without a storage. Additionally, this variant could be used:
- when replication is needed
- there is a need for high availability
- the database is not needed for later reuse
PostgreSQLReplicated (persistent)
This variant provides at least two instances of PostgreSQL. One is the master instance, the other runs in replication mode. Database data is stored on persistent storage.
Additionally, this variant could be used to:
- create and save a database for later reuse
- reuse an existing database
- there is a need for increasing the number of replicas
Handling NFR requirements for PostgreSQL variants
Access management for Postgres DB was integrated with LDAP directory.
All variants can be scaled up with respect to memory limit, and CPU request, persistent templates in addition for sizing of the persistent storage. Replicated template variants can be scaled using the built-in functionality of Kubernetes.
All connections to the database are configured with TLS encryption for secure transfer of data from/to server/client. For this, another CNCF tool called cert-manager is used to create and manage certificates.
Monitoring of PostgreSQL cluster is done using Prometheus and Grafana. PostgreSQL exporter was deployed alongside each PostgreSQL instance as a sidecar container. postgresql_exporter user connects to PostgreSQL database container and collects several metrics. PostgreSQL exporter exposes those metrics on /metrics endpoint. Prometheus container then scrapes /metrics endpoint of postgres_exporter container.
PostgreSQL provides High Availability through the concept of Log-Shipping Standby Servers. But this does not include automatic failover handling. This can be achieved using the Patroni framework. Patroni is used in the replicated variant provided by the database solution
Backup & restore for persistent variants are managed using WAL-G open-source framework. This framework is used for keeping the online backups and WAL file backups in the AWS-S3 as storage.

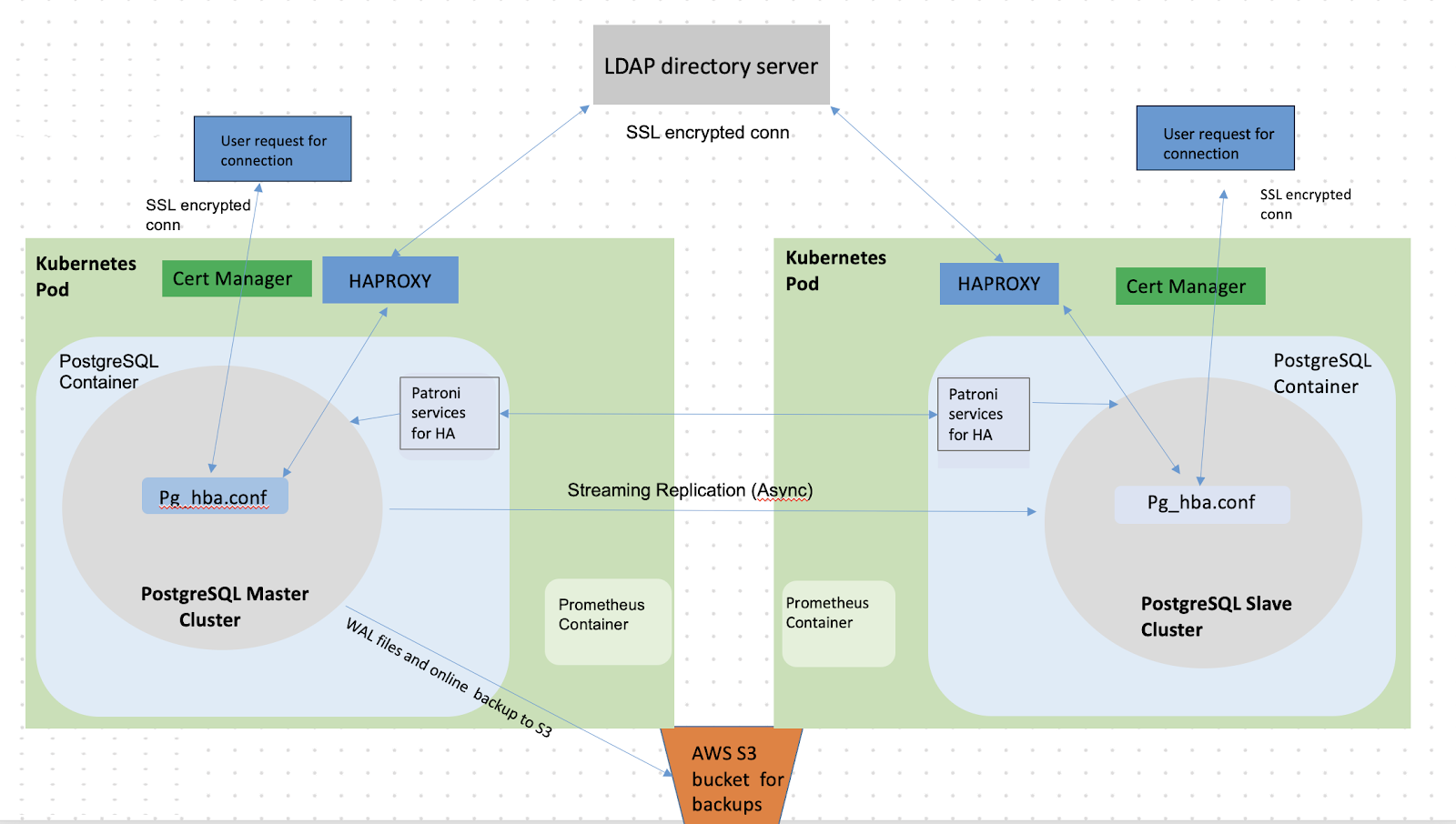

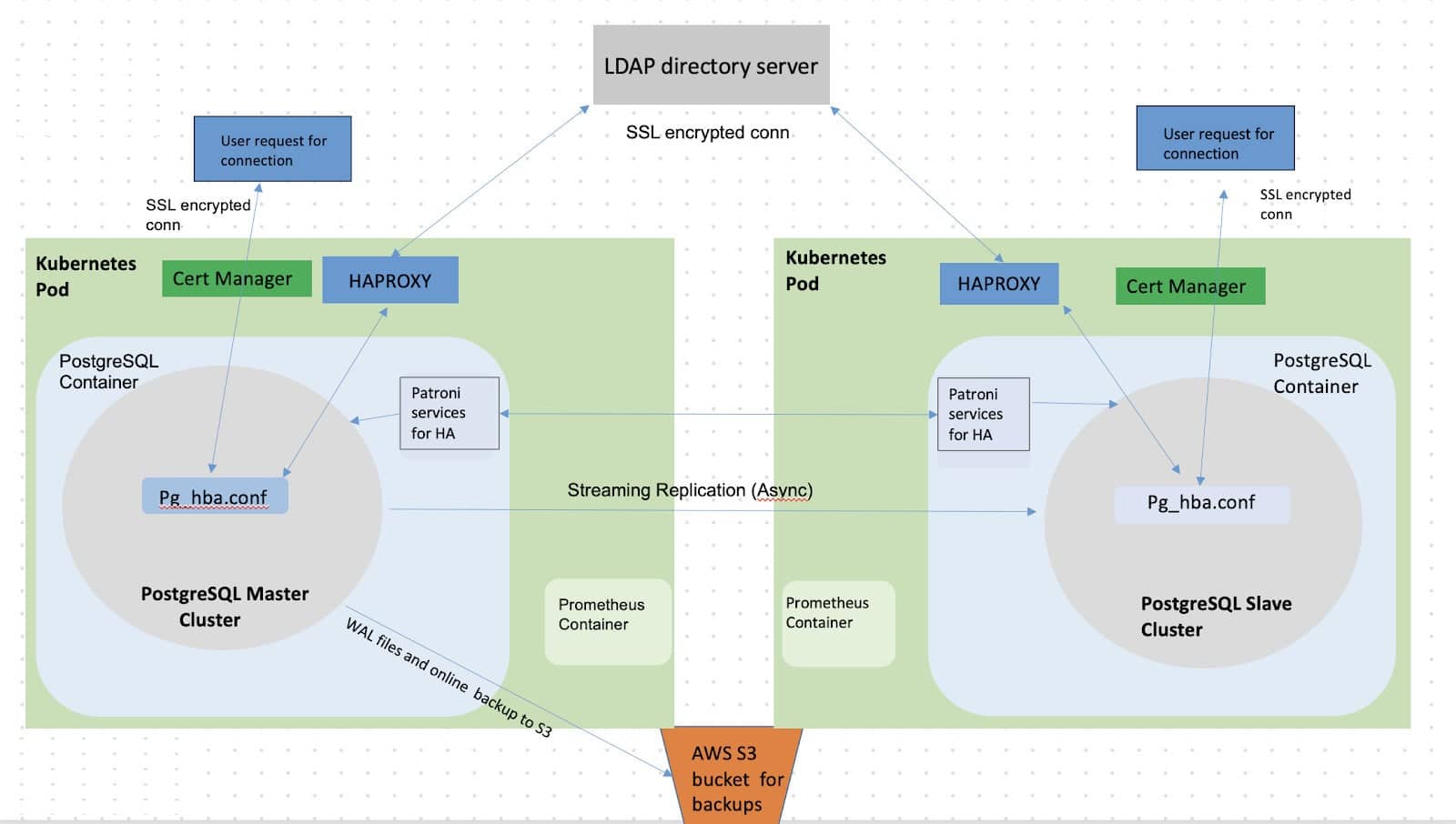

Architecture for PostgreSQL solution
Database solution for MongoDB
Solution for MongoDB is defined in four variants as below:
MongoDB (ephemeral)
This variant provides a single MongoDB instance with non-persistent storage and without replication. It uses the Wired Tiger Storage Engine.
MongoDB (persistent)
This variant provides a single MongoDB instance with persistent storage and without replication.
MongoDBReplicated (persistent)
This variant provides several MongoDB instances with persistent storage, and thus providing
- redundancy and data availability
- replication
- automatic failover
- scaled read operations

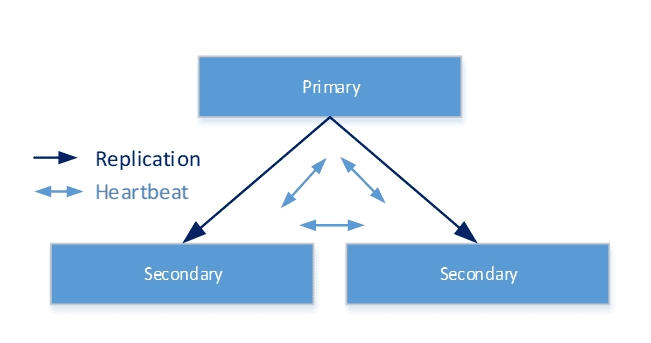

The default parameters create three MongoDB nodes:

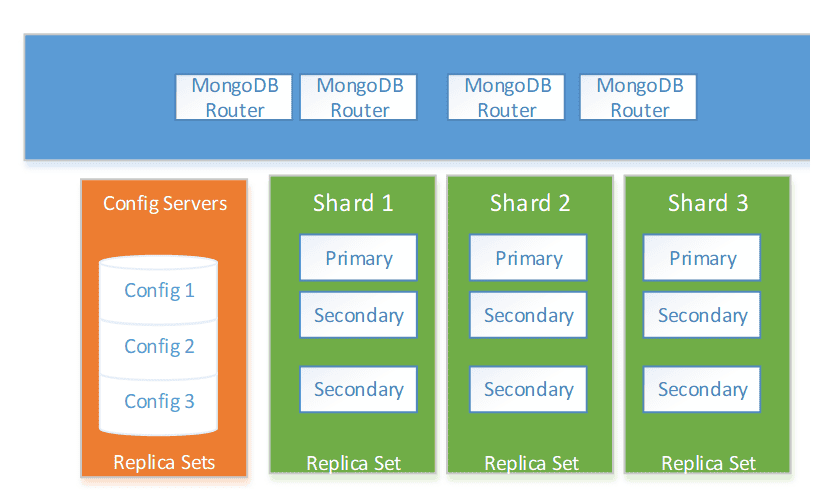

MongoDBReplicatedSharded (persistent)
The solution consists of three templates that work together to provide a replicated sharded MongoDB server.
MongoDBConfigServer (persistent)
ReplicaSet (persistent)
This variant provides a replicated config server (see orange color below). This component is used internally by the other components.
This variant provides MongoDB replicated servers with three replicas (see green color below).
ShardRouter
This variant provides a router for the shard’s servers with three replicas (see green color below).
- Handling NFR requirements for MongoDB variants
MongoDB provides a role-based approach for authorizing users to access data or perform database functions. Roles consist of a set of privileges which users with a specific role have. There is a set of built-in roles as well as the possibility to define application-specific roles.

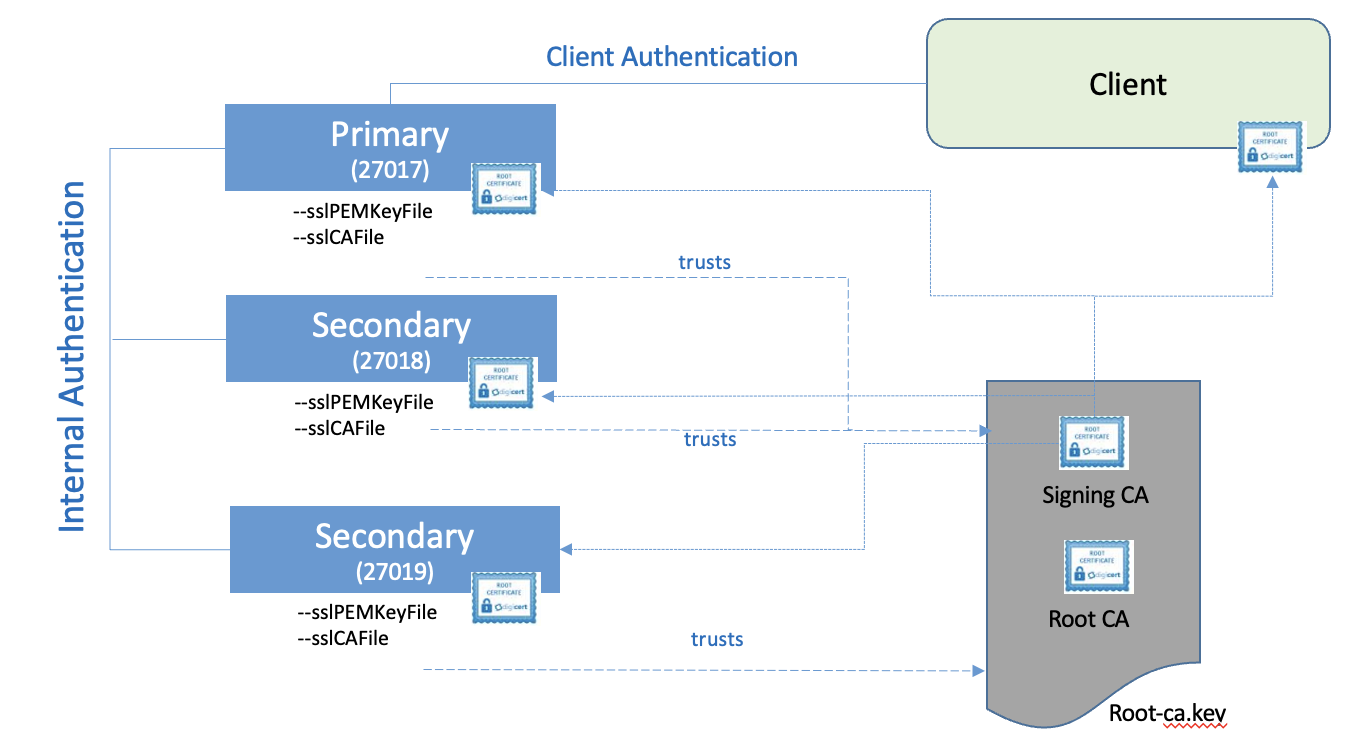

All connections to the database are configured with TLS encryption for secure transfer of data from/to server/client. For this, another CNCF tool called cert-manager is used to create and manage certificates. Following diagram shows high level implementation.
All variants can be scaled with respect to memory limit, and CPU request, persistent templates in addition for sizing of the persistent storage.
Replicated template variants can be scaled using the built-in functionality of Kubernetes. Horizontal scaling can be achieved by adding additional instances (replicas) for a component. A description on how to scale a component is provided in the usage description.
All data is stored in the MongoDB instances. By using the replicated templates additional instances can be achieved to ensure its availability even if the primary instance is not available. The number of replications can be configured in the configuration of a component described in the component’s usage description.

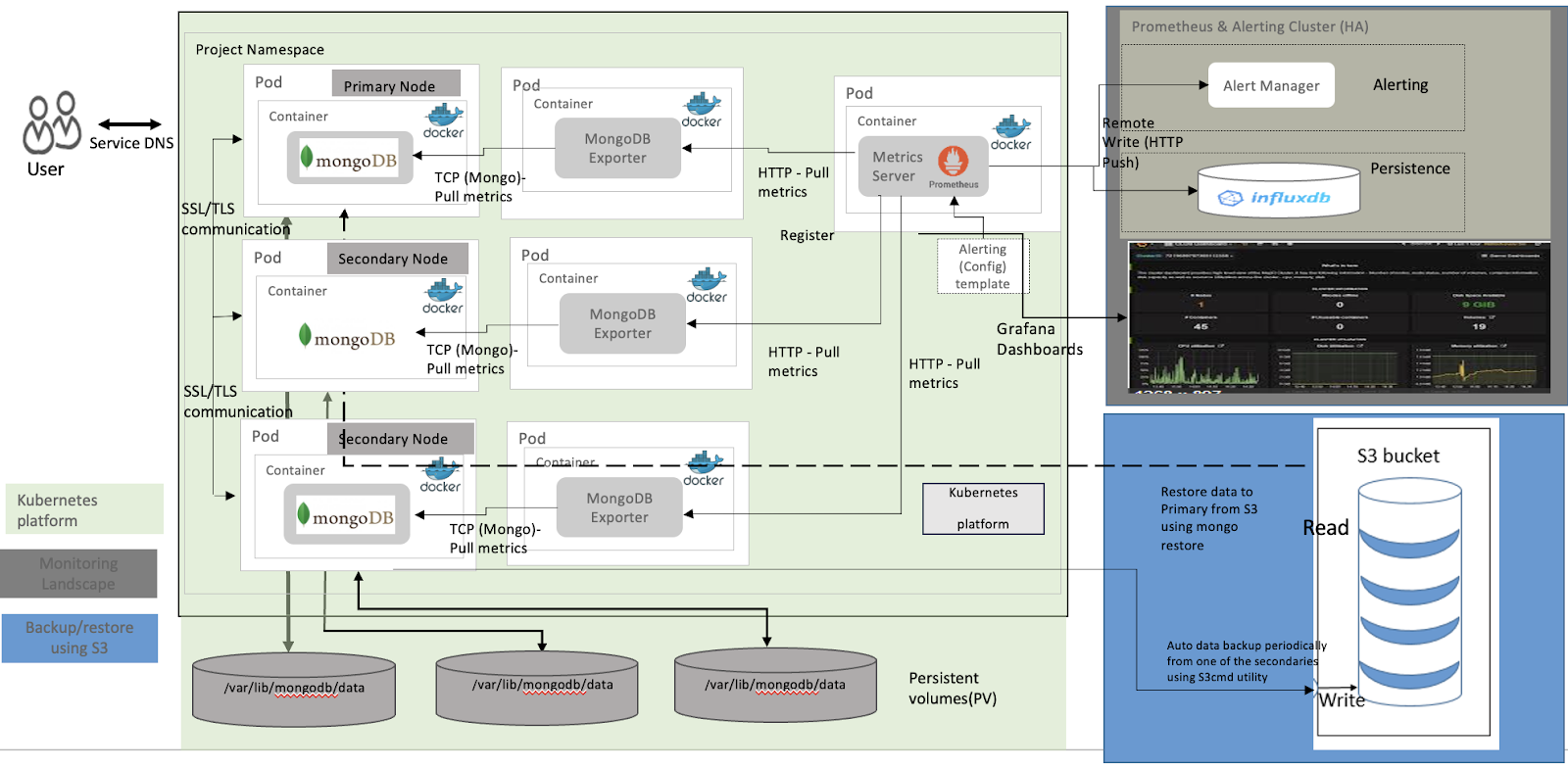

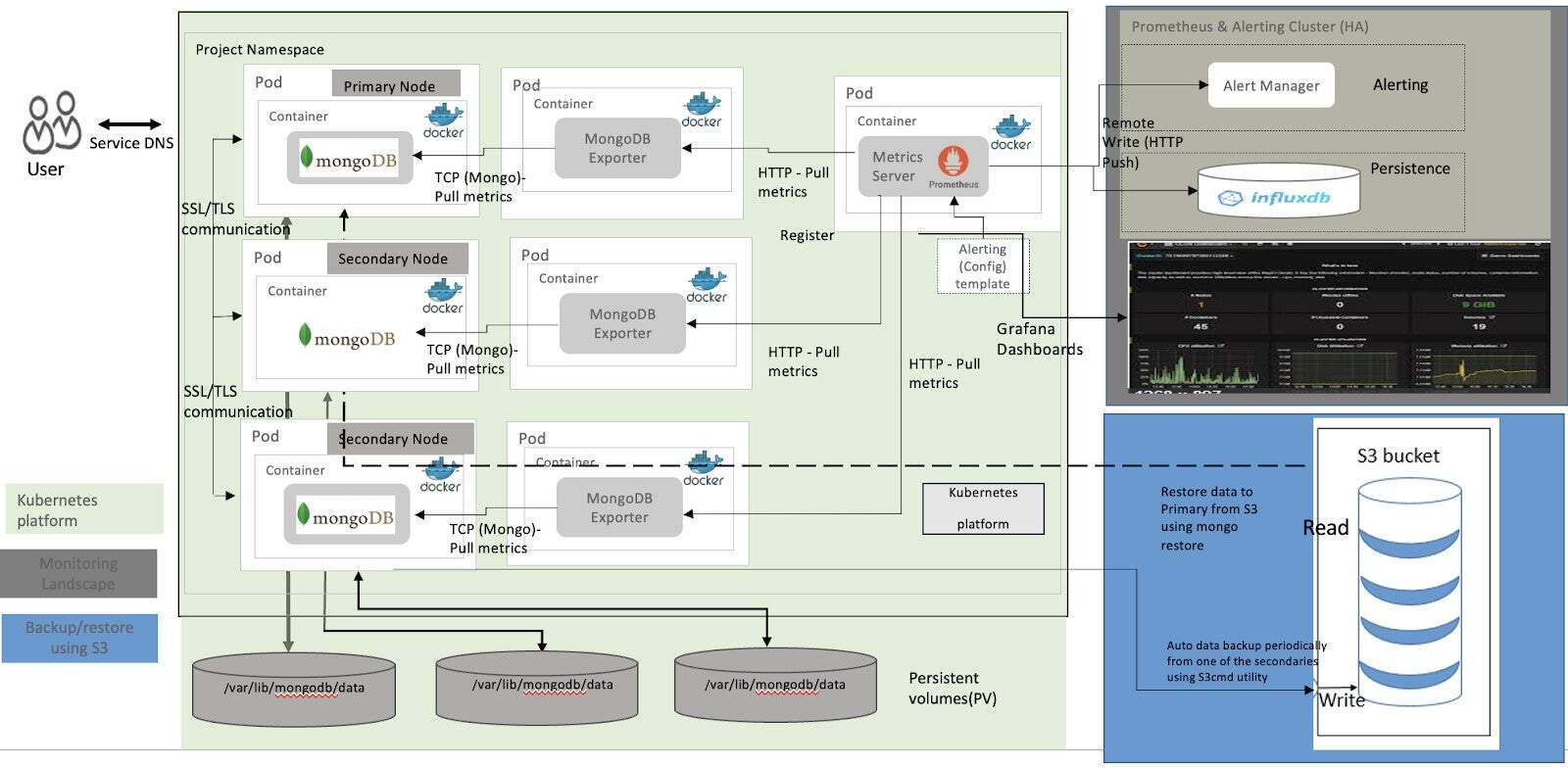

For monitoring services again Prometheus and Grafana are used. Prometheus is one of the most popular monitoring frameworks for Kubernetes environment. Each node running a MongoDB pod as part of a replica set, also has a sidecar container for mongodb_exporter. An exporter acts as an interface between MongoDB instance and metrics server/prometheus. This metrics server also runs in a separate pod which is available across the namespace. MongoDB exporter exposes those metrics on /metrics endpoint. Prometheus container then scrapes /metrics endpoint of mongodb_exporter container. The MongoDB exporter collects metrics from MongoDB container at regular intervals and expose them as an HTTP endpoint to be accessed and scraped by Prometheus. Following diagram shows monitoring architecture at high level.
Backup & restore for persistent variants are managed using Percona’s consistent backup solution, an open-source framework. This framework auto-discovers healthy members for backup by considering replication lag, replication ‘priority’ and by preferring ‘hidden’ members. Also creates cluster-consistent backups across many separate shards.
Database solution for Elastic
Solution for Elastic is defined in four variants as below:
Kibana (persistent)
This variant provides the GUI for Elasticsearch and functions as windows into the database.
Logstash
The Logstash image is configured to be customized with data and functionality via a repository located on a GIT server. To use it you have to provide a source repository.
Elasticsearch (ephemeral)
This variant provides an Elasticsearch instance without persistent storage.
Elasticsearch (persistent)
Elasticsearch is an open source search and analytics engine. It is based on the Apache Lucene search engine.
ElasticsearchReplicatedSharded (persistent)
This variant provides an Elasticsearch cluster with
- Replication
- Data + Admin + Client
- Scaled Read Operations
- Automatic Failover
- Sharding
Handling NFR requirements for Elastic variants
All versions can be scaled with respect to memory limit, and CPU request, persistent templates in addition for sizing of the persistent storage.
Replicated template versions can be scaled using the built-in functionality of Kubernetes. Horizontal scaling can be achieved by adding additional instances (replicas) for a component.
Authorization & Authentication is pluggable in Elastic and is configured using the config file.
Database solution for Cassandra
Solution for Cassandra is defined in four variants as below:
Cassandra (ephemeral)
This variant provides the following functionality:
- ACID-Compliant
- Stored Procedure
- Complex Transaction
CassandraReplicatedSharded (Ephemeral)
This variant provides a native cluster with replication capabilities
- Replication
- Sharding
- No single points of failure
- Constant uptime
- Multiple Location
Cassandra (persistent)
This variant provides the same functionality; the only difference is the persistence of the storage for the database.
CassandraReplicatedSharded (persistent)
This variant provides a native cluster with
- Replication
- Sharding
- No single points of failure
- Constant uptime
- Multiple Location
Handling NFR requirements for Cassandra variants
Authentication is pluggable in Cassandra and is configured in the configuration file. Cassandra ships with two options included in the default distribution.
By default, Cassandra is configured to run without authentication checks and therefore requires no credentials. It is used to disable authentication completely. But: using authentication is a necessary condition of Cassandra’s permissions subsystem, so if authentication is disabled, effectively so are permissions.
The default distribution includes PasswordAuthenticator, which stores encrypted credentials in a system table. This can be used to enable simple username/password authentication.
Authorization is pluggable in Cassandra and is configured using the authorizer setting in cassandra.yaml. Cassandra ships with two options included in the default distribution.
All versions can be scaled with respect to memory limit, and CPU request, persistent templates in addition for sizing of the persistent storage.
Replicated template versions can be scaled using the built-in functionality of Kubernetes. Horizontal scaling can be achieved by adding additional instances (replicas) for a component
Conclusion
In conclusion, using Database-as-a-Service (DBaaS) solutions, particularly with above solutions, offers a powerful and scalable approach to managing databases while leveraging the flexibility and innovation provided by CNCF (Cloud Native Computing Foundation) technologies. By combining the reliability and feature-rich environments of PostgreSQL with the agility and scalability of MongoDB and other mentioned databases, organizations can ensure robust data management while avoiding the complexities of manual database administration. CNCF technologies, such as Kubernetes and Prometheus etc, facilitate seamless orchestration, scaling, and monitoring, making it easier to manage database services in a cloud-native environment. This setup not only enhances operational efficiency but also enables developers to focus on building applications rather than managing infrastructure. Overall, DBaaS powered by CNCF technologies ensures that businesses can scale rapidly, maintain high availability, and optimize costs, all while taking full advantage of the flexibility inherent in cloud-native environments.
