If you’ve managed traffic in Kubernetes, you’ve likely navigated the world of Ingress controllers. For years, Ingress has been the standard way of getting our HTTP/S services exposed. But let’s be honest, it often felt like a compromise. We wrestled with controller-specific annotations to unlock critical features, blurred the lines between infrastructure and application concerns, and sometimes wished for richer protocol support or a more standardized approach. This “pile of vendor annotations,” while functional, highlighted the limitations of a standard that struggled to keep pace with the complex demands of modern, multi-team environments and even led to security vulnerabilities.
Wait a second is this the ‘Ingress vs. Gateway API’ debate?
Yes, and it’s a crucial one. The Kubernetes Gateway API isn’t just an Ingress v2; it’s a fundamental redesign, the “future” of Kubernetes ingress, built by the community to address these very challenges head-on.
What makes Gateway API different?
There are three main points that I came across while evaluating GatewayAPI and Ingress controllers:
- Standardization & Portability: It aims to provide a core, standard way to manage ingress, reducing reliance on vendor-specific hacks and making it easier to switch implementations – change the class, and it should “just work.”
- Role-Based Architecture: Its biggest win is arguably the separation of concerns. Infrastructure teams can manage the Gateway (the entry point, TLS, ports), while application teams manage their HTTPRoutes (or TCPRoutes, etc.), defining where their specific traffic should go. This mirrors how modern, segmented organizations operate.
- Richer Features: It natively supports more protocols and offers a standard way to implement advanced routing, traffic splitting, and filtering, features that often require non-standard solutions with Ingress.
The Ingress Rut
The Ingress controller landscape is a mishmash of vendors with cool ideas. While they all can route HTTP/S traffic into your cluster, expanding your services to include other protocols puts you at the mercy of that vendor and the capabilities that they implement. On top of that, if you try to migrate from your old Ingress Controller to a new one at some point, there is that sweet conversation of vendor lock-in which ties your hands. If you are wondering how vendor lock-in plays a role here, then take a closer look at your Ingress resources, don’t they all share some sort of annotation?
That “pile of vendor annotations,” while functional, is specific to that one great solution you are currently using, highlighting the limitations of a standard that struggled to keep pace and even led to security vulnerabilities.
The purpose of this blog
While Ingress isn’t disappearing tomorrow, the direction is clear. The Gateway API offers a path to a more robust, secure, and manageable ingress strategy. And now, with Calico v3.30, we’re introducing the Calico Ingress Gateway, a powerful, Envoy-based implementation of this next-generation standard at your fingertip.
This post will guide you through the settings and basic configurations that allows you to run a secure website deployment. We’ll set up the Calico Ingress Gateway, demonstrate its core concepts in action, and crucially, show you how to effortlessly secure your applications with automated TLS certificates and enforced HTTPS, leaving those annotation struggles behind. Let’s build the future of Kubernetes ingress, together.
Requirements
This blog is somehow a technical rundown of what you should expect, do and how everything ties together. While you can read each section to understand the fundamentals and the procedure you could also copy and paste these commands to run the demo environment in your environment. That being said there are some requirements that you’ll need:
- eksctl
- awscli + aws account
- A kubernetes environment with load balancer support (we used EKS for this example)
- Latest version of Calico, v3.30.0 or above
- A valid domain, Route53 used in this tutorial. (This is required for SSL certificate, an alternative self-signed certificate is provided in the next section)
- A browser to verify some settings
Spin up a Kubernetes Cluster
We need a running Kubernetes environment to deploy Calico, our application, and the Gateway API resources which happens in this step. We used EKS for our example since we wanted to tie the GatewayAPI resources to an actual domain and a valid certificate to emphasize its application in a real world scenario. However, If you don’t have access to any cloud providers don’t worry!
Just follow this link to set up a local environment with self-signed certificates.
We’ll create an EKS cluster using `eksctl`.
eksctl create cluster --name my-calico-cluster
Install Calico with Operator
To begin, we install the Tigera Operator, which is the recommended method for managing the lifecycle of Calico and its components. The operator simplifies the process of installing, upgrading, and configuring Calico and your Cluster networking.
kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.30.0/manifests/operator-crds.yaml
kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.30.0/manifests/tigera-operator.yaml
Use the following command to verify the operator installation:
kubectl rollout status -n tigera-operator deployment/tigera-operator
Next, we apply an Installation Custom Resource (CR) to configure Calico for our specific EKS environment. This CR defines how Calico should be deployed. For EKS, we specify the AmazonVPC CNI plugin and explicitly disable BGP, since networking is handled by the underlying AWS infrastructure.
Note: To use Calico eBPF dataplane checkout this documentation.
Use the following command to instruct the operator on how to install Calico in our environment.
kubectl create -f - <<EOF
kind: Installation
apiVersion: operator.tigera.io/v1
metadata:
name: default
spec:
kubeletVolumePluginPath: None
kubernetesProvider: EKS
cni:
type: AmazonVPC
calicoNetwork:
bgp: Disabled
EOF
The setup process starts with applying the Custom Resource Definitions (CRDs) required by the Tigera Operator, followed by deploying the operator itself. Once the operator is running, the Installation CR tells it how to tailor Calico to the environment ensuring it integrates smoothly with the EKS network.
Use the following command to verify the installation:
kubectl get tigerastatus
You should see a result similar to the following:
NAME AVAILABLE PROGRESSING DEGRADED SINCE
calico True False False 4d10h
ippools True False False 4d10h
Deploy a Demo Application
To demonstrate the capabilities of the Gateway API and the Calico Ingress Gateway, we deploy Google’s “Online Boutique”, a popular microservices demo application. This application provides a realistic, multi-service architecture with a user-facing frontend ideal for showcasing traffic management and security.
We deploy it using the following command, which pulls the Kubernetes manifests directly from the official GitHub repository and creates the necessary Deployments and Services:
kubectl create -f
https://raw.githubusercontent.com/GoogleCloudPlatform/microservices-demo/refs/heads/release/v0.10.2/release/kubernetes-manifests.yaml
Once deployed, we verify the status of the frontend deployment and identify the associated ClusterIP service:
kubectl rollout status deployment/frontend
You can verify the services by using the following command:
kubectl get svc | egrep frontend
You should see a result similar to the following:
frontend ClusterIP 10.100.42.132 <none> 80/TCP 5d19h
frontend-external LoadBalancer 10.100.43.33 a78ef864683d543e59c7d91fba812176-247554297.us-west-2.elb.amazonaws.com 80:30816/TCP 5d19h
At this point we can agree that our application is now successfully deployed and our customers can access it using the DNS name that is provided by the load balancer. However, this traffic is unencrypted, which highlights the key security gap we’re aiming to address.
In the next steps we are going to use Calico Ingress Gateway to equip our application with SSL and run it in HTTPS without changing our application, or server code.
Enable Calico Ingress Gateway
Now, let’s switch on the Calico Ingress Gateway. We do this by applying a GatewayAPI CR. Remember, this CR belongs to the Tigera Operator (operator.tigera.io/v1) and acts as the ‘on’ switch. Creating it tells the operator to deploy its managed Envoy Proxy, which will handle our incoming traffic. Calico uses Envoy as its engine for implementing the official Kubernetes Gateway API standard, giving us access to powerful routing and security features.
Use the following command to enable Calico Ingress Gateway capabilities:
kubectl create -f - <<EOF
apiVersion: operator.tigera.io/v1
kind: GatewayAPI
metadata:
name: default
EOF
This Calico-specific GatewayAPI resource is the essential prerequisite before we can use Kubernetes gateway API standard objects.
Use the following command to check the deployment status:
kubectl wait --for=condition=Available tigerastatus gatewayapi
To ensure the Envoy deployment is fully up and running before we proceed, we wait for the previous command to report back “condition met”.
Calico Ingress Gateway bundles a secure custom built image of Envoy Proxy, a popular and feature rich open source project that needs no introduction. Our integration provides a set of utilities that you can use to secure, manipulate or even change Layer 7 communications such as HTTP, gRPC etc..
SSL Certificate and Automated Certification Process with Cert-Manager
Manually managing TLS certificates is tedious and error-prone. cert-manager automates issuance, renewal, and configuration, ensuring our application remains secure with valid certificates.
kubectl create -f
https://github.com/cert-manager/cert-manager/releases/download/v1.17.2/cert-manager.yaml
Gateway API integration
By default cert-manager GatewayAPI integration is not enabled. This is the part that monitors the gateway api resources to issue certificates for them.
Use the following command that enables gatewayapi integration:
kubectl patch deployment -n cert-manager cert-manager --type='json' --patch '
[
{
"op": "add",
"path": "/spec/template/spec/containers/0/args/-",
"value": "--enable-gateway-api"
}
]'
ClusterIssuer
Issuers and ClusterIssuers are cert-manager resources that represent certificate authorities (CAs) capable of signing certificate requests. Every Certificate resource in cert-manager needs an associated Issuer (or ClusterIssuer).
In our case, we create a ClusterIssuer, which is a cluster-scoped resource used to configure a CA in this example, Let’s Encrypt. We configure it to use the HTTP-01 challenge method for domain validation and explicitly tell it to solve these challenges via the calico-demo-gw Gateway (This makes more sense in the next steps).
📌 Note: Be sure to replace <USER-YOUR-EMAIL-HERE> with your actual email address. This is required by Let’s Encrypt for important expiry notices and terms of service updates.
Use the following command to create a clusterissuer resource:
kubectl create -f -<<EOF
apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
name: letsencrypt
spec:
acme:
server: https://acme-v02.api.letsencrypt.org/directory
email: <USER-YOUR-EMAIL-HERE>
privateKeySecretRef:
name: letsencrypt-account-key
solvers:
- http01:
gatewayHTTPRoute:
parentRefs:
- kind: Gateway
name: calico-demo-gw
namespace: default
EOF
Deploy Gateway API Resources
This is where the magic of Gateway API happens! We define how traffic enters the cluster and where it goes using standard, portable resources.
In this example, we need to create two key Gateway API resources:
- Gateway: Acts as the entry point for external traffic, binding to a specific address and port.
- HTTPRoute: Defines the actual routing rules, specifying how requests should be matched and forwarded to backend services.
Gateway
The Gateway resource defines the cluster’s entry point for external traffic, something typically owned and managed by the platform or infrastructure team. It specifies a gatewayClassName (in our case, tigera-gateway-class), signaling that Calico’s Ingress Gateway should manage this Gateway instance.
Within the spec, we define two listeners, which describe the network interfaces exposed by the Gateway, for example, HTTP traffic on port 80, and HTTPS on port 443. Each of these listeners can be associated with routes using their names (more on this in the next section). Depending on protocol capabilities of each section, those listeners determine which protocols are accepted and how they are handled.
Use the following command to create a gateway:
kubectl create -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
annotations:
cert-manager.io/cluster-issuer: letsencrypt
name: calico-demo-gw
spec:
gatewayClassName: tigera-gateway-class
listeners:
- name: http
protocol: HTTP
port: 80
- name: https
protocol: HTTPS
port: 443
hostname: <REPLACE_WITH_YOUR_DOMAIN>
tls:
mode: Terminate
certificateRefs:
- kind: Secret
group: ""
name: secure-demo-cert
EOF
When a Gateway is created, it triggers the provisioning of a Kubernetes LoadBalancer Service, making the Gateway accessible to external clients. You can confirm this by listing your cluster services inside the `tigera-gateway` namespace named `envoy-default-calico-demo-gw-xxxxxxx`.
Note: At this stage we need to add the Calico Ingress Gateway IP to the domain A record that we added in the https section. Keep in mind that different domain registrars will have different ways to update DNS records.
HTTPRoute
Now that we have our gateways set up and ready, we need to create the route logic.
The HTTPRoute is where application-level routing logic lives, typically managed by the application or platform team. It defines how traffic, once accepted by a Gateway, should be routed within the cluster.
In our example, the HTTPRoute attaches to the previously defined Gateways via a parentRef, and sectionName. This creates a clear handoff: the Gateway handles ingress traffic, and the HTTPRoute determines what to do with it.
First, we need to allow any connection to “/.well-known/acme-challenge/” to take place, this is required for ACME certification challenge. We can do that by adding a special match before any other rules.
- matches:
- path:
type: PathPrefix
value: /.well-known/acme-challenge/
Next we need to make sure that any other http request gets a redirect header and user is sent to the HTTPS gateway.
- matches:
- path:
type: PathPrefix
value: /
filters:
- type: RequestRedirect
requestRedirect:
scheme: https
statusCode: 301
port: 443
And finally we need to make sure all requests that are connected to our HTTPS gateway are going to be routed to our internal services.
backendRefs:
- group: ""
kind: Service
name: frontend
Use the following command to create HTTPRoute:
kubectl create -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: http-redirect
namespace: default
spec:
parentRefs:
- group: gateway.networking.k8s.io
kind: Gateway
name: calico-demo-gw
namespace: default
port: 80
sectionName: http
rules:
- matches:
- path:
type: PathPrefix
value: /.well-known/acme-challenge/
backendRefs:
- group: ""
kind: Service
name: frontend
namespace: default
port: 80
weight: 1
- matches:
- path:
type: PathPrefix
value: /
filters:
- type: RequestRedirect
requestRedirect:
scheme: https
statusCode: 301
port: 443
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: https-access
namespace: default
spec:
parentRefs:
- group: gateway.networking.k8s.io
kind: Gateway
name: calico-demo-gw
namespace: default
port: 443
sectionName: https
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- group: ""
kind: Service
name: frontend
namespace: default
port: 80
weight: 1
EOF

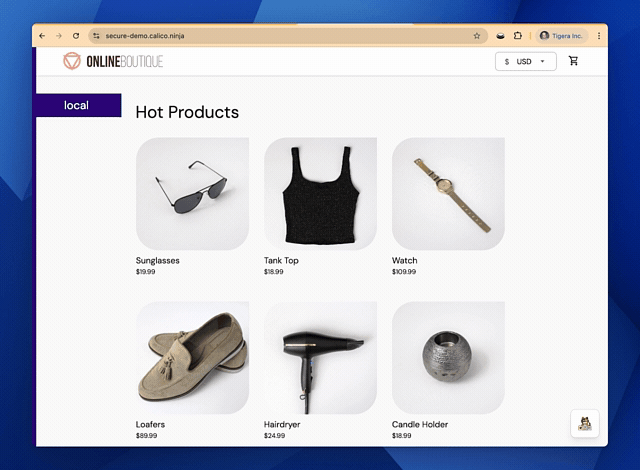

At this point you should be able to open the Online Boutique by pointing your browser to your domain.
curl -I https://secure-demo.calico.ninja/
You should see a result similar to the following:
HTTP/2 200
set-cookie: shop_session-id=dac269ac-ff27-4749-a494-5d5d6793eb7a; Max-Age=172800
date: Fri, 23 May 2025 00:53:42 GMT
content-type: text/html; charset=utf-8
Note: If you run the curl command against the HTTP port you should see a 301 header redirecting our users to the HTTPS endpoint.
Alternatively you can check the certificate using your favorite browser.
Congratulations, you’ve deployed your website securely using a valid HTTPS certificate!
Clean up
If you followed the steps in this blog post to create the demo environment use the following command to clean up the resources.
kubectl delete gateway calico-demo-gw
eksctl delete cluster my-calico-cluster
Conclusion
The journey through Kubernetes traffic management is evolving. For years, Ingress served us well, but as our applications and operational models grew in complexity, its limitations became increasingly apparent. The “pile of vendor annotations,” the blurred lines of responsibility, and the struggle for richer protocol support signaled the need for a change.
While Ingress won’t vanish overnight, the path forward is clear. The Kubernetes Gateway API, brought to life by implementations like the Calico Ingress Gateway, offers a more sustainable, secure, and feature-rich approach. By making the leap, you’re not just adopting a new technology; you’re investing in a more streamlined, resilient, and future-proof way to manage traffic in your Kubernetes environments.
